Atlantic City (NJ) – Boardwalk Hall (''Convention Hall'')

2314 Pacific Avenue, NJ 08401 Atlantic City (NJ)                     in Google Maps anzeigen       view at Google Maps
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Orgel / organ
7 Manuale, 449 Ranks, 314 Register (+ 231 Ext. + 127 Tr.), 33.451 Pfeifen

1929-1932 erbaut von Midmer-Losh (USA, Merrick)
1944 Beschädigung der mechanischen Teile der Orgel durch ein Erdbeben
Nach dem 2. Weltkrieg Reparatur der Schäden - allerdings hat das extrem komplizierte Kombinationssystem offenbar noch nie 100%-ig funktioniert; seit Jahrzehnten funktioniert es nun praktisch gar nicht mehr.
Asbestfunde verhindern den Zugang und damit die Wartung der Divisions Echo, Fanfare und String III; überhaupt fehlt seit Jahrzehnten das Geld für notwendige Wartungs- und
Reparaturarbeiten, so dass derzeit (2015) nur noch 96 Register und 132 Ranks spielbar sind.
Seit 1998 gibt es insbesondere von Hauptorganist Steven Ball geleitete Bemühungen, die notwendigen 'zig Millionen Dollar für eine Renovierung aufzubringen. Bislang (2021) ist etwa die Hälfte der Orgel restauriert
Fast alle Teilwerke arbeiten auf extrem hohen Winddrücken von 10-30" - einige (hier besonders gekennzeichnete) sogar auf 50" bis100"
Auch wenn die Wanamaker-Orgel über mehr Ranks verfügt, hält die Orgel in Atlantic City fast alle anderen Rekorde, nämlich:

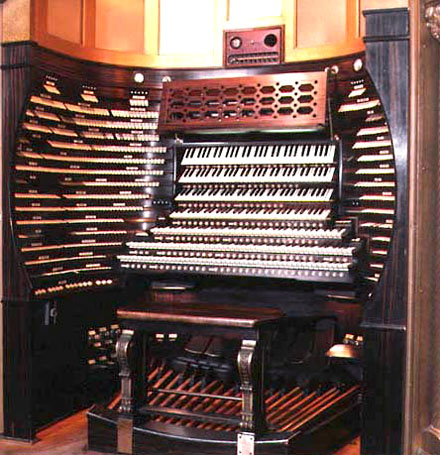

Größte Pfeifenzahl der Welt, größter Spieltisch der Welt, lautestes Musikinstrument der Welt.
Auch das Pfeifenmaterial (Stärke / Dicke / Mensuren, ...) ist unglaublich - die Fotos können den realen Eindruck, den man vor Ort bekommt, nur schwach wiedergeben!
Details und Disposition der Orgel / specification and stoplist of this organ
Direkte Links / direct links:   Fotos / pictures
  8-30 Megapixel-Fotogalerie / 8-30 megapixel picture gallery


Main Divisions
x
I. Choir (Left Forward) 46 (35)   II. Great (Right Stage) 63 (38)   III. Swell (Left Stage) 55 (36)   IV. Solo (Right Stage) 34 (23)   Pedal (Left Stage) 16 (10)
Quintaton 16 **   Principal 32   Double Diapason 16   Major Flute 16   Diaphone 32 50"; *
Melodia 16   Double Diapason I 16   Contra Gamba 16   Major Flute 10 2/3 Ext.   Diapason 32
Dulciana 16   Double Diapason II 16   Diapason I 8   Stentor Diapason 8   Diaphone 16 Ext.
Double Bass 16 Tr. String II*   Double Diapason III 16   Diapason II 8   Major Flute 8 Ext.   Major Diapason 16
Contra Bass 16 Tr. String II*   Sub Quint 10 2/3   Tibia Plena 8   Hohl Flute 8   Diapason 16 Ext.
Contra Viol 16 Tr. String II*   Principal 8 Ext.   Hohl Flute 8   Flute Ouverte 8   Diaphonic Diapason 16 *
Diapason 8 **   Diapason I 8   Harmonic Flute 8   Tibia Rex 8   Double Diapason 16 Tr. Swell
Diapason I 8   Diapason II 8   Harmonic Flute Celeste 8   Cello Pomposa 8   Stopped Diapason 16 Tr. Sw-Ch.
Diapason II 8   Diapason III 8   Wald Horn 8   Cello Celeste 8   Tibia Clausa 16
Concert Flute 8   Diapason IV 8   Gross Gedeckt 8   Violin 8   Doppel Gedeckt 16 Tr. Sw-Ch.
Holz Flute 8 **   Diapason V 8   Gamba 8   Violin Celeste 8   Contra Basso 16 Tr. String I
Nachthorn 8   Diapason VI 8   Gamba Celeste 8   Major Flute 5 1/3 Ext.   Contra Gamba 16 Tr. Swell
Melodia 8 Ext.   Diapason VII 8   Violin 8   Stentor Octave 4   Cone Gamba 16 Tr. Sw-Ch.
Gemshorn 8   Diapason VIII 8   Viol Celeste I II 8   Major Flute 4 Ext.   Bass Viol 16
Gemshorn Celeste 8   Diapason IX 8   Viol Celeste II II 8   Wald Flute 4   Diapason 10 2/3 Ext.
Philomela 8   Diapason X 8   Double Diapason 4 Ext.   Viola Pomposa 4   Stopped Diapason 10 2/3 Tr. Sw-Ch.
Double Bass 8 Tr. String II*   Harmonic Flute 8   Octave 4   Flute Twelfth 2 2/3   Cone Gamba 10 2/3 Tr. Sw-Ch.
Contra Bass 8 Tr. String II*   Flute Ouverte 8   Ocarina 4   Harmonic Piccolo 2   Diaphone 8 Ext.
Contra Viol 8 Tr. String II*   Contra Basso 8 Tr. String I*   Traverse Flute 4   Grand Chorus IX 4   Diapason 8 Ext.
Viola Pomposa 8   Double Bass 8 Tr. String II*   Silver Flute 4   Carillon IV 1 3/5   Diaphonic Diapason 8 Ext.
Viola Celeste 8   Contra Bass 8 Tr. String II*   Contra Gamba 4 Ext.   Tuba Magna 16 50"   Tibia Clausa 8 Ext.
Dulciana 8 Ext.   Contra Viol 8 Tr. String II*   Gambette 4   Trumpet Profunda 16   Clarabella 8 Tr. Sw-Ch.
Dulciana Celeste 8   Quint 5 1/3   Fifteenth 2   Trumpet Profunda 10 2/3 Ext.   Doppel Spitz Flute 8 Tr. Sw-Ch.
Voix Celeste II 8   Octave I 4   Orchestral Piccolo 2   Tuba Imperial 8 100"   Gemshorn 8 Tr. Sw-Ch.
Unda Maris 8   Octave II 4   Cymbal VIII 2 2/3   Tuba Magna 8 Ext.   Bass Viol 8 Ext.
Tromba Reale 8   Octave III 4   Plein Jeu VII 2   Trumpet Profunda 8 Ext.   Third 6 2/5 Tr. Sw-Ch.
Dulciana 5 1/3 Ext.   Octave IV 4   Furniture V 2   Trumpet Royal 8   Fagotto 5 1/3 Ext.
Octave 4 **   Octave V 4   Double Trumpet 16   Bugle 8 50"   Fifth 5 1/3 Tr. Sw-Ch.
Flute Ouverte 4   Double Diapason I 4 Ext.   Double Horn 16   English Post Horn 8   Seventh 4 4/7 Tr. Sw-Ch.
Spindle Flute 4   Harmonic Flute 4   Posaune 8   French Horn 8   Diaphone 4 Ext.
Contra Bass 4 Tr. String II*   Gross Tierce 3 1/5   Field Trumpet 8   Tuba Magna 5 1/3 Ext.   Diapason 4 Ext.
Contra Viol 4 Tr. String II*   Major Twelfth 2 2/3   Harmonic Trumpet 8   Tuba Magna 4 Ext.   Tibia Clausa 4 Ext.
Fugara 4   Principal 2 Ext.   Muted Trumpet 8   Trumpet Profunda 4 Ext.   Gemshorn 4 Tr. Sw-Ch.
Dolce 4   Fifteenth I 2   Cornopean 8   + Schweller   Third 3 1/5 Tr. Sw-Ch.
Melodia 2 2/3 Ext.   Fifteenth II 2   Flügel Horn 8     Fagotto 2 2/3 Ext.
Fifteenth 2 **   Fifteenth III 2   Krummhorn 8     Fifth 2 2/3 Tr. Sw-Ch.
Flageolet 2   Grand Cornet XI 10 2/3   Vox Humana 8     Seventh 2 2/7 Tr. Sw-Ch.
Melodia 2 Ext.   Rausch Quint I II 5 1/3 + 4   Double Trumpet 4 Ext.     Diapason 2 Ext.
Rausch Quint IV 2 2/3**   Major Sesquialtera V 3 1/5   Trumpet Clarion 4     Tibia Clausa 2 Ext.
Flute Mixture III 2   Rausch Quint II II 2 2/3 + 2   Double Horn 4 Ext.     Fagotto 2 Ext.
Acuta VI 1 1/3   Schulze Mixture V 2 2/3   + Marimba Harp Tr. Sw-Ch.     Gemshorn 2 Tr. Sw-Ch.
Contra Tromba 16   Furniture VI 1 3/5   + Glockenspiel Tr. Sw-Ch.     Tibia Clausa 1 Ext.
Brass Cornet 8   Trumpet 16   + Schweller     Stentor Sesquialtera VII 8
French Horn 8   Harmonic Trumpet 8       Bombard 32 50"; *
Clarinet 8   Harmonic Clairon 4       Fagotto 32
Bassett Horn 8   + 2 Xylophone Tr. Gt-So.       Bombard 16 Ext.*
Cor Anglais 8   + Chimes Tr. Gt-So.       Major Posaune 16 50"; *
Kinura 8         Double Trumpet 16 Tr. Swell
Contra Tromba 4 Ext.   *) Zusätzl. "2nd Touch"       Double Horn 16 Tr. Swell
+ Schweller (außer **)         Fagotto 16 Ext.
        Oboe 16 Tr. Sw-Ch.
*) Zusätzl. "2nd Touch"         Clarinet 16 Tr. Sw-Ch.
        Vox Humana 16 Tr. Sw-Ch.
        Bombard 8 Ext.
        Major Posaune 8 Ext.*
        Fagotto 8 Ext.
        Oboe 8 Tr. Sw-Ch.
        Clarinet 8 Tr. Sw-Ch.
        Bombard 4 Ext.*
        Fagotto 4 Ext.
        Oboe 4 Tr. Sw-Ch.

        *) Zusätzl. "2nd Touch"


Main Divisions
x
Swell Choir (Left Stage) 17 (17)   Great-Solo (Right Stage) 24 (24)   V. Fanfare (Left Upper) 36 (21)   VI. Echo (Right Upper) 27 (22)   Pedal (Right Stage) 11 (11)
Stopped Diapason 16   Geigen Principal 16   Major Flute 16   Spire Flute 16   Principal 32 Tr. Great
Doppel Gedeckt 16   Tibia Clausa 16   Stentor Flute 8   Gamba 16   Tibia Clausa 32
Cone Gamba 16   Wald Flute 16   Stentorphone 8   Violone 16   Tibia Clausa 21 1/3 Ext.
Stopped Diapason 8 Ext.   Tibia Clausa 10 2/3 Ext.   Pileata Magna 8   Diapason 8   Principal 16
Clarabella 8   Wald Flute 10 2/3 Ext.   Major Flute 4 Ext.   Tibia Mollis 8   Principal 16 Tr. Great
Doppel Spitz Flute 8   Geigen Principal 8 Ext.   Flute Octaviante 4   Spire Flute 8 Ext.   Geigen Principal 16 Tr. Gt-So.
Doppel Gedeckt 8 Ext.   Diapason Phonon 8   Recorder 2 2/3   Spitz Flute 8   Double Diapason I 16 Tr. Great
Gemshorn 8   Horn Diapason 8   Fife 2   Spitz Flute Celeste I 8   Diaphone Phonon 16 50"
Gemshorn Celeste I 8   Tibia Clausa 8 Ext.   Stentor Mixture VII 4   Spitz Flute Celeste II 8   Tibia Major 16 *
Gemshorn Celeste II 8   Wald Flute 8 Ext.   Harmonic Mixture VI 1 3/5   Flute Sylvestre 8   Tibia Clausa 16 Ext.
Cone Gamba 8 Ext.   Doppel Gedeckt 8   Cymbal V 1 1/3   Flute Celeste 8   Tibia Clausa 16 Tr. Gt-So.
Third 6 2/5   Gemshorn 8   Posaune 16 50"   Waldhorn 8   Major Flute 16 Tr. Solo
Cone Gamba 5 1/3 Ext.   Gemshorn Celeste 8   Bombardon 16   Clarabella 8   Wald Flute 16 Tr. Gt-So.
Gemshorn Celeste I 5 1/3 Ext.   Viola da Gamba 8   Trombone 16   Gamba 8 Ext.   Viol 16 *
Fifth 5 1/3   Vox Celeste 8   Tromba Quint 10 2/3   Violone 8 Ext.   Tierce 12 4/5
Seventh 4 4/7   Gemshorn Terz 6 2/5   Harmonic Tuba 8 50"   Violone Celeste 8   Principal 10 2/3 Ext.
Stopped Diapason 4 Ext.   Tibia Clausa 5 1/3 Ext.   Ophicleide 8 50"   Rohr Flute 4   Diaphone Phonon 10 2/3 Ext.
Clarabella 4 Ext.   Wald Flute 5 1/3 Ext.   Posaune 8 Ext.   Spire Flute 4 Ext.   Tibia Major 10 2/3 Ext.
Doppel Spitz Flute 4 Ext.   Gemshorn Quint 5 1/3   Bombardon 8 Ext.   Clarabella 4 Ext.   Tibia Clausa 10 2/3 Ext.
Zauber Flute 4   Gemshorn Septieme 4 4/7   Trombone 8 Ext.   Gamba 4 Ext.   Tibia Clausa 10 2/3 Tr. Gt-So.
Doppel Gedeckt 4 Ext.   Geigen Principal 4 Ext.   Tromba Quint 8 Ext.   Violone 4 Ext.   Septieme 9 1/7
Gemshorn 4 Ext.   Diapason Phonon 4 Ext.   Gamba Tuba 8   Spire Flute 2 2/3 Ext.   Principal 8 Ext.
Cone Gamba 4 Ext.   Horn Diapason 4 Ext.   Gamba Tuba Celeste 8   Clarabella 2 2/3 Ext.   Geigen Principal 8 Tr. Gt-So.
Ninth 3 5/9   Tibia Clausa 4 Ext.   Tromba Tierce 6 2/5   Spire Flute 2 Ext.   Double Diapason I 8 Tr. Great
Gemshorn Celeste II 3 1/5 Ext.   Wald Flute 4 Ext.   Trombone 5 1/3 Ext.   Clarabella 2 Ext.   Horn Diapason 8 Tr. Gt-So.
Third 3 1/5 Ext.   Doppel Gedeckt 4 Ext.   Tromba Quint 5 1/3 Ext.   Spire Flute 1 1/3 Ext.   Tibia Major 8 Ext.*
Eleventh 2 10/11   Gemshorn 4 Ext.   Harmonic Tuba 4 Ext.   Spire Flute 1 Ext.   Tibia Clausa 8 Ext.
Stopped Diapason 2 2/3 Ext.   Gemshorn Celeste 4 Ext.   Major Clarion 4 50"   Mixture Aetheria VI 2   Doppel Gedeckt 8 Tr. Gt-So.
Clarabella 2 2/3 Ext.   Viola da Gamba 4 Ext.   Posaune 4 Ext.   Tuba d'Amour 16   Gemshorn 8 Tr. Gt-So.
Fifth 2 2/3 Ext.   Vox Celeste 4 Ext.   Bombardon 4 Ext.   Bassoon 16   Viol 8 Ext.*
Gemshorn Celeste I 2 2/3 Ext.   Gemshorn Terz 3 1/5 Ext.   Trombone 4 Ext.   Clarinet 16   Tierce 6 2/5 Ext.
Seventh 2 2/7 Ext.   Gemshorn Celeste 3 1/5 Ext.   Gamba Clarion 4   Vox Humana 16   Tibia Clausa 5 1/3 Ext.
Doppel Spitz Flute 2 Ext.   Tibia Clausa 2 2/3 Ext.   Tromba Tierce 3 1/5 Ext.   Tuba d'Amour 8 Ext.   Tibia Major 5 1/3 Ext.
Zauber Flute 2 Ext.   Wald Flute 2 2/3 Ext.   Tromba Quint 2 2/3 Ext.   Trumpet Minor 8   Principal 5 1/3 Ext.
Gemshorn 2 Ext.   Gemshorn Quint 2 2/3 Ext.   Bombardon 2 Ext.   Bassoon 8 Ext.   Septieme 4 4/7 Ext.
Ninth 1 7/9 Ext.   Gemshorn Septieme 2 2/7 Ext.   + Schweller   Clarinet 8 Ext.   Principal 4 Ext.
Gemshorn Celeste II 1 3/5 Ext.   Geigen Principal 2 Ext.     Cor d'Amour 8   Horn Diapason 4 Tr. Gt-So.
Third 1 3/5 Ext.   Horn Diapason 2 Ext.     Vox Humana 8 Ext.   Tibia Major 4 Ext.*
Eleventh 1 5/11 Ext.   Wald Flute 2 Ext.     Vox Humana 8   Tibia Clausa 4 Ext
Gemshorn Celeste I 1 1/3 Ext.   Gemshorn 2 Ext.     Tuba d'Amour 4 Ext.   Viol 4 Ext.*
Fifth 1 1/3 Ext.   Gemshorn Terz 1 3/5 Ext.     Bassoon 4 Ext.   Tierce 3 1/5 Ext.
Seventh 1 1/7 Ext.   Gemshorn Celeste 1 3/5 Ext.     Clarinet 4 Ext.   Tibia Major 2 2/3 Ext.
Zauber Flute 1 Ext.   Gemshorn Quint 1 1/3 Ext.     Vox Humana 4 Ext.   Tibia Clausa 2 2/3 Ext.
Gemshorn 1 Ext.   Gemshorn Septieme 1 1/7 Ext.     + Chimes   Viol 2 2/3 Ext.
Ninth 8/9 Ext.   Gemshorn 1 Ext.     + Schweller   Septieme 2 2/7 Ext.
Third 4/5 Ext.   Gemshorn Terz 4/5 Ext.       Principal 2 Ext.
Eleventh 8/11 Ext.   Gemshorn Quint 2/3 Ext.       Wald Flute 2 Tr. Gt-So.
Fifth 2/3 Ext.   Gemshorn 1/2 Ext.       Tierce 1 3/5 Ext.
Gemshorn 1/2 Ext.   Gemshorn 1/4 Ext.       Tibia Major 1 1/3 Ext.
Gemshorn 1/4 Ext.   Oboe Horn 16       Septieme 1 1/7 Ext.
Fagotto 32 Tr. Ped. L.   Saxophone 16       Septieme 1 1/7 Ext.
Oboe 16   English Horn 16       Diaphone-Dulzian 64 volle Länge*
Clarinet 16   French Horn 16       Diaphone-Dulzian 42 2/3 Ext.
Vox Humana 16   Vox Baryton 16       Bombardon 32 *
Oboe 8 Ext.   Krummhorn 16       Diaphone-Dulzian 32 Ext..
Clarinet 8 Ext.   Oboe Horn 8 Ext.       Diaphone-Dulzian 21 1/3 Ext.
Vox Humana 8 Ext.   Saxophone 8 Ext.       Grand Ophicleide 16 100"; *
Oboe 4 Ext.   Orchestral Saxophone 8       Tuba Magna 16 Tr. Solo
Clarinet 4 Ext.   English Horn 8 Ext.       Bombardon 16 Ext.*
Vox Humana 4 Ext.   French Horn 8 Ext.       Trumpet Profunda 16 Tr. Solo
+ Chimes Tr. Gt-So.   Clarinet 8       Trumpet 16
+ Marimba Harp   Orchestral Oboe 8       Diaphone-Dulzian 16 Ext.
+ Glockenspiel   Vox Baryton 8 Ext.       Oboe Horn 16 Tr. Gt-So.
+ Schweller   Krummhorn 8 Ext.       English Horn 16 Tr. Gt-So.
  Vox Humana 8       Saxophone 16 Tr. Gt-So.
  Kinura 8       Vox Baryton 16 Tr. Gt-So.
  Oboe Horn 4 Ext.       Krummhorn 16 Tr. Gt-So.
  Saxophone 4 Ext.       Bombardon 10 2/3 Ext.
  English Horn 4 Ext.       Diaphone-Dulzian 10 2/3 Ext.
  French Horn 4 Ext.       Grand Ophicleide 8 Ext.*
  Krummhorn 4 Ext.       Bombardon 8 Ext.*
  Vox Humana 4 Ext.       Trumpet 8 Ext.
  + 2 Xylophone       Bugle 8 Tr. Solo
  + Chimes       Diaphone-Dulzian 8 Ext.*
  + Harp       Vox Baryton 8 Tr. Gt-So.
  + 2 Schweller       Krummhorn 8 Tr. Gt-So.
        Bombardon 5 1/3 Ext.
        Trumpet 5 1/3 Ext.
        Trumpet 4 Ext.
        Diaphone-Dulzian 4 Ext.*
        + Chimes Tr. Gt-So.*

        *) Zusätzl. "2nd Touch"


String & Brass Divisions
x
String I (Left Stage) 20 (11)   String II (Right Forward) 37 (24)   String III (Left Upper) 17 (9)   Brass (Right Forward) 10 (8)   Pedal (Left Gallery) 0 (0)
Contra Basso 16   Double Bass 16   Cello Celeste I II 8   Trombone 16   Contra Diapason 16 Tr. Gal. III
Cello 8   Contra Bass 16   Cello Celeste II II 8   Trombone 8   Major Flute 16 Tr. Fanfare
Cello Celeste I II 8   Contra Viol 16   Viola Celeste II 8   Tromba 8   Melodia 16 Tr. Choir
Cello Celeste II II 8   Viola Diapason 8   Viol Celeste I II 8   Tromba Quint 5 1/3   Dulciana 16 Tr. Choir
Violins I II 8   Violoncello 8   Viol Celeste II II 8   Trombone 4   Melodia 8 Tr. Choir
Violins II II 8   Cello Phonon 8   Viol Celeste III II 8   Tromnba Twelfth 2 2/3   Trombone 32 Ext. Fanfare
Violins III II 8   Cello 8   Viol Celeste IV II 8   Trombone 2   Posaune 16 Tr. Fanfare
Violins IV II 8   Cello Celeste II 8   Viol Celeste V II 8   Tierce Mixture III 3 1/5   Bombardon 16 Tr. Fanfare
Violins Secundo I II 8   Viola Phonon 8   Cor Anglais 8     Trombone 16 Tr. Fanfare
Violins Secundo II II 8   Viola Celeste II 8   + Grand Piano 16 Tr. Gal. III     Contra Tromba 16 Tr. Choir
Contra Basso 4 Ext.   Viol Phonon 8   + Grand Piano 8 Tr. Gal. III     Saxophone 16 Tr. Gal. IV
Violins Secundo I II 4   Violin 8   + Grand Piano 4 Tr. Gal. III     Tromba Quint 10 2/3 Tr. Fanfare
+ Schweller   Viol Celeste I II 8   + Schweller     Trombone 8 Tr. Fanfare
  Viol Celeste II II 8       Contra Tromba 8 Tr. Choir
  Viol Celeste III II 8       Tromba Tierce 6 2/5 Tr. Fanfare
  Viol Celeste IV II 8       Tromba Quint 5 1/3 Tr. Fanfare
  Viol Celeste V II 8       Tromba Tierce 3 1/5 Tr. Fanfare
  Stopped Flute 5 1/3       + Grand Piano 16 Tr. Gal. III
  Viol Principal 4       + Grand Piano 8 Tr. Gal. III
  Stopped Flute 4 Ext.
  Double Bass 4 Ext.
  Contra Bass 4 Ext.
  Contra Viol 4 Ext.
  Viola II 4
  Violin II 4
  Flute Twelfth 2 2/3
  Stopped Flute 2 Ext.
  String Mixture V 3 1/5
  Tromba d'Amour 8
  + Schweller


Gallery Divisions
x
VII. Gallery I (Right Center) 10 (4)   VII. Gallery II (Right Center) 9 (7)   VII. Gallery III (Left Center) 9 (6)   VII. Gallery IV (Left Center) 8 (8)   Pedal (Right Gallery) 0 (0)
Diaphone 16   Flauto Maggiore 16   Contra Diapason 16   Saxophone 16   Violone 32 Ext. Echo
Diaphone 8 Ext.   Jubal Flute 8   Diapason I 8   Brass Trumpet 8   Flauto Maggiore 16 Tr. Gal. II
Mixture Mirabilis VII 4   Harmonic Flute 8   Diapason II 8   Saxophone 8 Ext.   Spire Flute 16 Tr. Echo
Trumpet Mirabilis 16 100"   Flauto Maggiore 4 Ext.   Contra Diapason 4 Ext.   Major Clarinet 8   Clarabella 16 Tr. Echo
Tuba Maxima 8 100"   Harmonic Flute 4   Octave 4   Major Oboe 8   Double Bass 16 Tr. String II
Trumpet Mirabilis 8 Ext.   Harmonic Twelfth 2 2/3   Fifteenth 2   Cor d'Orchestre 8   Contra Bass 16 Tr. String II
Tuba Maxima 4 Ext.   Harmonic Piccolo 2   Mixture IV 2   Euphone 8   Contra Viol 16 Tr. String II
Trumpet Mirabilis 4 Ext.   Harmonic Mixture III 1 3/5   + Grand Piano 16 Ext.   Egyptian Horn 8   Gamba 16 Tr. Echo
+ Schweller   + Schweller   + Grand Piano 8   Musette Mirabilis 8   Violone 16 Tr. Echo
    + Grand Piano 4 Ext.   Saxophone 4 Ext.   Clarabella 10 2/3 Tr. Echo
      + Schweller   Spire Flute 8 Tr. Echo
        Violone 8 Tr. Echo
        Violone 4 Tr. Echo
        Tuba d'Amour 16 Tr. Echo
        Trumpet Mirabilis 16 Tr. Gal. I
        Diaphone 16 Tr. Gal. I
        Bassoon 16 Tr. Echo
        Clarinet 16 Tr. Echo
        Vox Humana 16 Tr. Echo
        Bassoon 8 Tr. Echo


Other Divisions
x
Grand Great (Transm. only) 0 (0)   Grand Choir (Transm. only) 0 (0)   Percussion (Right Stage) 0 (0)
Principal 8 Tr. Ped. R.   Diaphone 16 Tr. Ped. L.   + Gong
Tibia Clausa 8 Tr. Ped. R.   Diaphone 8 Tr. Ped. L.   + Contra Drum
Tibia major 8 Tr. Ped. R.   Diapason 8 Tr. Ped. L.   + Bass Drum I
Viol 8 Tr. Ped. R.   Diaphonic Diapason 8 Tr. Ped. L.   + Bass Drum II
Principal 4 Tr. Great   Tibia Clausa 8 Tr. Ped. L.   + Snare Drum I
Tibia major 4 Tr. Ped. R.   Bass Viol 8 Tr. Ped. L.   + Snare Drum II
Viol 4 Tr. Ped. R.   Bombard 16 Tr. Ped. L.   + Snare Drum III
Principal 2 Tr. Ped. R.   Fagotto 16 Tr. Ped. L.   + Cymbal
Diaphone-Dulzian 32 Tr. Ped. R.   Major Posaune 8 Tr. Ped. L.   + Chinese Gong
Bombardon 16 Tr. Ped. R.   Bombard 8 Tr. Ped. L.   + Persian Cymbal I
Bombardon 8 Tr. Ped. R.   Fagotto 8 Tr. Ped. L.   + Persian Cymbal II
Grand Ophicleide 8 Tr. Ped. R.   Bombard 4 Tr. Ped. L.   + Tambourine
Trumpet 8 Tr. Ped. R.   Fagotto 4 Tr. Ped. L.   + Castanets
Trumpet 4 Tr. Ped. R.     + Triangle
    + Wood Block
    + Tom-Tom


Quelle (source): Spieltisch, Broschüre, Buch (Hielscher), www.boardwalkpipes.com (Website wurde aufgelöst), E-Mail Steven Ball, E-Mail Christoph Hintermüller

Anmerkung: Die roten Zahlen neben den Manualbezeichnungen geben die Anzahl der Ranks (in Klammern: Register) dieses Teilwerks an (zur Zählweise und Sortierung siehe Anmerkungen).
Remark: The red digits beneath the devision descriptions show the total ranks (in brackets: voices / registers) of the division (as to counting and sequence see annotations).


Fotos in hoher Auflösung (Originalgröße nur für Abonnenten) / high-resolution photos (original size for subscribers only)


Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Boardwalk Hall von den Dünen aus
Boardwalk Hall von den Dünen aus
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Boardwalk Hall Außenansicht
Boardwalk Hall Außenansicht
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Boardwalk Hall mit benachbarten Hotels
Boardwalk Hall mit benachbarten Hotels
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Boardwalk Hall mit Strand
Boardwalk Hall mit Strand
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Boardwalk Hall Fassade
Boardwalk Hall Fassade
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Innenraum der Boardwalk Hall
Innenraum der Boardwalk Hall
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Rechte Orgelkammer
Rechte Orgelkammer
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Eingangsschild zur rechten Orgelkammer
Eingangsschild zur rechten Orgelkammer
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Tiefste 8 Pfeifen des Diapason 32' im Left Stage Pedal
Tiefste 8 Pfeifen des Diapason 32' im Left Stage Pedal
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pfeifen des Diapason 32' im Left Stage Pedal
Pfeifen des Diapason 32' im Left Stage Pedal
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pfeifen der Bombarde 32' im Left Stage Pedal auf 50' Winddruck (daher die spezielle Befestigung)
Pfeifen der Bombarde 32' im Left Stage Pedal auf 50' Winddruck (daher die spezielle Befestigung)
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Tiefste Pfeifen der Major Posaune 16' im Left Stage Pedal auf 50' Winddruck
Tiefste Pfeifen der Major Posaune 16' im Left Stage Pedal auf 50' Winddruck
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pfeifen der Major Posaune 16' im Left Stage Pedal auf 50' Winddruck
Pfeifen der Major Posaune 16' im Left Stage Pedal auf 50' Winddruck
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pfeifen der Bombarde 32' (Ext. bis 4') im Left Stage Pedal auf 50' Winddruck
Pfeifen der Bombarde 32' (Ext. bis 4') im Left Stage Pedal auf 50' Winddruck
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pfeifen der Bombarde 32' (Ext. bis 4') im Left Stage Pedal auf 50' Winddruck
Pfeifen der Bombarde 32' (Ext. bis 4') im Left Stage Pedal auf 50' Winddruck
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pfeifen der höheren Oktaven des Fagotto 32' (Ext. bis 4') im Left Stage Pedal
Pfeifen der höheren Oktaven des Fagotto 32' (Ext. bis 4') im Left Stage Pedal
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pfeifen der Major Posaune 16' im Left Stage Pedal
Pfeifen der Major Posaune 16' im Left Stage Pedal
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pfeifen der höheren Lagen des Fagotto 32' (Ext. bis 4') im Left Stage Pedal
Pfeifen der höheren Lagen des Fagotto 32' (Ext. bis 4') im Left Stage Pedal
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pfeifen der Bombarde 32' im Left Stage Pedal auf 50' Winddruck
Pfeifen der Bombarde 32' im Left Stage Pedal auf 50' Winddruck
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pfeifen der Major Posaune 16' im Left Stage Pedal
Pfeifen der Major Posaune 16' im Left Stage Pedal
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Links: Pfeifen der Bass Viol 16', rechts Major Posaune 16' im Left Stage Pedal
Links: Pfeifen der Bass Viol 16', rechts Major Posaune 16' im Left Stage Pedal
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pfeifen des Diapason 32' im Left Stage Pedal
Pfeifen des Diapason 32' im Left Stage Pedal
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pfeifen des Diapason 32' im Left Stage Pedal
Pfeifen des Diapason 32' im Left Stage Pedal
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Die höchsten 8 Pfeifen der Bombarde 32' Major Posaune 16' im Left Stage Pedal (beide auf 50' Wind)
Die höchsten 8 Pfeifen der Bombarde 32' Major Posaune 16' im Left Stage Pedal (beide auf 50' Wind)
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pfeifen des Diapason 32' im Left Stage Pedal
Pfeifen des Diapason 32' im Left Stage Pedal
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pfeifen des Diapason 32' im Left Stage Pedal
Pfeifen des Diapason 32' im Left Stage Pedal
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), 7-manualiger Spieltisch
7-manualiger Spieltisch
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Linke Registerstaffel, unterer Teil
Linke Registerstaffel, unterer Teil
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Linke Registerstaffel, oberer Teil
Linke Registerstaffel, oberer Teil
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Linke Registerstaffel
Linke Registerstaffel
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Rechte Registerstaffel
Rechte Registerstaffel
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Rechte Registerstaffel oberer Teil
Rechte Registerstaffel oberer Teil
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Rechte Registerstaffel unterer Teil
Rechte Registerstaffel unterer Teil
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pistons auf der linken Pedalseite
Pistons auf der linken Pedalseite
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pistons auf der rechten Pedalseite
Pistons auf der rechten Pedalseite
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Spieltisch mit Registerwippen
Spieltisch mit Registerwippen
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Spieltisch perspektivisch
Spieltisch perspektivisch
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Spieltisch von oben
Spieltisch von oben
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Spieltisch Gesamtansicht
Spieltisch Gesamtansicht
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Innenraum des Spieltischs - Kontaktbänke der Tasten der 7 Manuale
Innenraum des Spieltischs - Kontaktbänke der Tasten der 7 Manuale
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Kontakte und Schalter der Registerwippen auf der linken Seite
Kontakte und Schalter der Registerwippen auf der linken Seite
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Elektrische Koppeln der 7 Manuale
Elektrische Koppeln der 7 Manuale
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Kontakte und Schalter der Registerwippen auf der rechten Seite
Kontakte und Schalter der Registerwippen auf der rechten Seite
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Tastatur-Kontakte der 7 Manuale
Tastatur-Kontakte der 7 Manuale
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Linke Registerstaffel von oben
Linke Registerstaffel von oben
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Rechte Registerstaffel von oben
Rechte Registerstaffel von oben
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Blick auf die teils 7 Oktaven umfassenden Manuale
Blick auf die teils 7 Oktaven umfassenden Manuale
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Blick vom Spieltisch in die Boardwalk Hall
Blick vom Spieltisch in die Boardwalk Hall
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Beater und 8mm dicke Stahlzunge des 64' Dulzian-Diaphone
Beater und 8mm dicke Stahlzunge des 64' Dulzian-Diaphone
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Hochdruckzungen mit sicherer Befestigungskonstruktion am Pfeifenfuß
Hochdruckzungen mit sicherer Befestigungskonstruktion am Pfeifenfuß
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Windlade des 64' Dulzian-Diaphone, hier das Ventil zum DDDDD
Windlade des 64' Dulzian-Diaphone, hier das Ventil zum DDDDD
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Diapason-Pfeifen im Great mit Blick auf dien neuen Klann Compound Windladen-Magnete
Diapason-Pfeifen im Great mit Blick auf dien neuen Klann Compound Windladen-Magnete
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Holzlager' des Right Stage Pedals. Die Mensuren und sind so groß, dass man leicht hineinfallen könnte
Holzlager' des Right Stage Pedals. Die Mensuren und sind so groß, dass man leicht hineinfallen könnte
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Diapason-Pfeifen im Great mit Unenclosed Melodic Percussion
Diapason-Pfeifen im Great mit Unenclosed Melodic Percussion
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Hauptwerkszungen 16, 8 und 4' im Great auf 30' Winddruck
Hauptwerkszungen 16, 8 und 4' im Great auf 30' Winddruck
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Hauptwerkszungen 16, 8 und 4' im Great auf 30' Winddruck
Hauptwerkszungen 16, 8 und 4' im Great auf 30' Winddruck
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Hauptwerkszungen 16, 8 und 4' im Great auf 30' Winddruck
Hauptwerkszungen 16, 8 und 4' im Great auf 30' Winddruck
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Hauptwerkszungen 16, 8 und 4' im Great auf 30' Winddruck
Hauptwerkszungen 16, 8 und 4' im Great auf 30' Winddruck
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Einer der Relais-Räume der Right Stage Pfeifenkammern, original erhalten und noch funktionstüchtig
Einer der Relais-Räume der Right Stage Pfeifenkammern, original erhalten und noch funktionstüchtig
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Detailansicht Verkabelung und Relais
Detailansicht Verkabelung und Relais
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pfeifen der Tuba Magna (50' Wind!) im Solo
Pfeifen der Tuba Magna (50' Wind!) im Solo
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pfeifen im Solo, links das Post Horn 8'
Pfeifen im Solo, links das Post Horn 8'
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Labialpfeifen im Great-Solo in der Right Stage Kammer
Labialpfeifen im Great-Solo in der Right Stage Kammer
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Zungenpfeifen im Great-Solo in der Right Stage Kammer
Zungenpfeifen im Great-Solo in der Right Stage Kammer
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Krummhorn, French Horn, Saxophone, English Horn, Oboe Horn (l-r) der Great-Solo Zungenbatterie
Krummhorn, French Horn, Saxophone, English Horn, Oboe Horn (l-r) der Great-Solo Zungenbatterie
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Great-Solo Zungen mit der Vox Baryton 16' - vermutlich eine der seltsamsten Pfeifen in der Orgel
Great-Solo Zungen mit der Vox Baryton 16' - vermutlich eine der seltsamsten Pfeifen in der Orgel
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Gigantische Becher der Vox Baryton 16' im Great-Solo
Gigantische Becher der Vox Baryton 16' im Great-Solo
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pfeifen des Bombardon 32' im Right Stage Pedal
Pfeifen des Bombardon 32' im Right Stage Pedal
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Links Pfeifen der Tibia Major 16', rechts Bombardon 32' im Right Stage Pedal
Links Pfeifen der Tibia Major 16', rechts Bombardon 32' im Right Stage Pedal
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pfeifenfüße des Bombardon 32' im Right Stage Pedal
Pfeifenfüße des Bombardon 32' im Right Stage Pedal
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Kompressor / Windversorgung für die 100'-Register im Right Stage Blower Raum
Kompressor / Windversorgung für die 100'-Register im Right Stage Blower Raum
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Mechanismus / Pulsgenerator für zwei regelbare Tremulanten
Mechanismus / Pulsgenerator für zwei regelbare Tremulanten
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Kompressoren für die Niederdruck- (vorn) und Hochdruck- (hinten) Windversorgung im Right Stage Blower Raum
Kompressoren für die Niederdruck- (vorn) und Hochdruck- (hinten) Windversorgung im Right Stage Blower Raum
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Links: Hochdruck-Kompressor, rechts Niederdruck-Kompressor im Right Stage Blower Raum, dahinter (nicht sichbar) der 100'-Kompressor
Links: Hochdruck-Kompressor, rechts Niederdruck-Kompressor im Right Stage Blower Raum, dahinter (nicht sichbar) der 100'-Kompressor
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Innenraum Gesamtansicht
Innenraum Gesamtansicht
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Firmenschild von Midmer-Losh, den Erbauern, am Spieltisch
Firmenschild von Midmer-Losh, den Erbauern, am Spieltisch
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Spieltisch im eigenen Gehäuse
Spieltisch im eigenen Gehäuse
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Spieltisch und rechte Orgelkammer
Spieltisch und rechte Orgelkammer
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Spieltisch im eigenen Gehäuse
Spieltisch im eigenen Gehäuse
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Spieltisch
Spieltisch
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Spieltisch
Spieltisch
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Portabler' 5-manualiger Spieltisch im Foyer
Portabler' 5-manualiger Spieltisch im Foyer
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Portabler' 5-manualiger Spieltisch im Foyer
Portabler' 5-manualiger Spieltisch im Foyer
Photo: © Martin Doering
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Regulatorbälge für Right Stage, montiert in der Werkstatt
Regulatorbälge für Right Stage, montiert in der Werkstatt
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Inschrift auf dem Regulatorbalg
Inschrift auf dem Regulatorbalg
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pfeifenfüße des Dulzian-Diaphone 64' (mit Nathan Bryson zum Größenvergleich)
Pfeifenfüße des Dulzian-Diaphone 64' (mit Nathan Bryson zum Größenvergleich)
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Inschrift auf Windverteiler neben den Stiefeln
Inschrift auf Windverteiler neben den Stiefeln
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Diskantlade der Tibia clausa
Diskantlade der Tibia clausa
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Vordergrund: 16'-Lage der Diaphonreihe, Hintergrund: Stopped 32'
Vordergrund: 16'-Lage der Diaphonreihe, Hintergrund: Stopped 32'
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Klemmleiste für Einzelapparate
Klemmleiste für Einzelapparate
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Einer der Relais-Räume der Right Stage Pfeifenkammern, original erhalten und noch funktionstüchtig
Einer der Relais-Räume der Right Stage Pfeifenkammern, original erhalten und noch funktionstüchtig
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Einer der Relais-Räume der Right Stage Pfeifenkammern, original erhalten und noch funktionstüchtig
Einer der Relais-Räume der Right Stage Pfeifenkammern, original erhalten und noch funktionstüchtig
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Relais-Raum der Right Stage außen
Relais-Raum der Right Stage außen
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Spieltisch seitlich
Spieltisch seitlich
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Detail der Spieltischbank
Detail der Spieltischbank
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Spieltisch: Pedal-Spielkästchen
Spieltisch: Pedal-Spielkästchen
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Spieltisch: Schwellersteuerung über basseitiger Registertafel innen
Spieltisch: Schwellersteuerung über basseitiger Registertafel innen
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Spieltisch: Manual-Spielkästchen
Spieltisch: Manual-Spielkästchen
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Spieltisch: basseitige Registertafel von innen
Spieltisch: basseitige Registertafel von innen
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Klemmleiste im Spieltisch, Trakturabgang
Klemmleiste im Spieltisch, Trakturabgang
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Schwelltritte und Pistons im Pedal
Schwelltritte und Pistons im Pedal
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Lautsprecher des originalen Intercom-Systems über dem Notenpult
Lautsprecher des originalen Intercom-Systems über dem Notenpult
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Innenraum Ansicht in Gegenrichtung der Orgel
Innenraum Ansicht in Gegenrichtung der Orgel
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Pfeifen des Diapason 32' im Left Stage Pedal (mit Nathan Bryson zum Größenvergleich)
Pfeifen des Diapason 32' im Left Stage Pedal (mit Nathan Bryson zum Größenvergleich)
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Diaphon-Diskante im Left Stage
Diaphon-Diskante im Left Stage
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Left Stage: Open Diapason 16’ mit doppeltem Kern
Left Stage: Open Diapason 16’ mit doppeltem Kern
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Left Stage: Diskant der Posaune
Left Stage: Diskant der Posaune
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Left Stage: Contrafagott 32’ Bass
Left Stage: Contrafagott 32’ Bass
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Left Stage: Diaphon-Rreihe
Left Stage: Diaphon-Rreihe
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Left Stage: Diaphon-Rreihe
Left Stage: Diaphon-Rreihe
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Left Stage: Contrafagott 32’ Diskant
Left Stage: Contrafagott 32’ Diskant
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Left Stage: Swell untere Etage außen, Hinterlade
Left Stage: Swell untere Etage außen, Hinterlade
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Left Stage: Schwellersteuerung
Left Stage: Schwellersteuerung
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Left Stage: Swell untere Etage außen, Hinterlade, Detail
Left Stage: Swell untere Etage außen, Hinterlade, Detail
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Left Stage: Swell obere Etage außen, Vorderlade von unten
Left Stage: Swell obere Etage außen, Vorderlade von unten
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Left Stage: Swell untere Etage außen, Vorderlade
Left Stage: Swell untere Etage außen, Vorderlade
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Left Stage: Swell untere Etage innen, Hinterlade
Left Stage: Swell untere Etage innen, Hinterlade
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Spieltisch und Right Stage Pfeifenkammer
Spieltisch und Right Stage Pfeifenkammer
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Innenraum mit Left und Right Stage Pfeifenkammern
Innenraum mit Left und Right Stage Pfeifenkammern
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Spieltisch
Spieltisch
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Lagerraum Pfeifen des Nachthorn 8' (Front left)
Lagerraum Pfeifen des Nachthorn 8' (Front left)
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Unrestaureirtes Pfeifenwerk, vorgefundener Zustand
Unrestaureirtes Pfeifenwerk, vorgefundener Zustand
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Left Stage: SW obere Etage, Bugle 8’
Left Stage: SW obere Etage, Bugle 8’
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Left Stage: SW obere Etage, Bugle 8’
Left Stage: SW obere Etage, Bugle 8’
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Left Stage: Swell untere Etage
Left Stage: Swell untere Etage
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Left Stage: Swell obere Etage, Vorderlade
Left Stage: Swell obere Etage, Vorderlade
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Left Stage: String I
Left Stage: String I
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Left Stage: String I
Left Stage: String I
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Schallgitter der Right Stage Pfeifenkammer
Schallgitter der Right Stage Pfeifenkammer
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Schallgitter der Front Left-Pfeifenkammer
Schallgitter der Front Left-Pfeifenkammer
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Bühne und Orgelkammern seitlich
Bühne und Orgelkammern seitlich
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Center Left, Hinterlade  - Zustand nach Wasserschaden 1964
Center Left, Hinterlade - Zustand nach Wasserschaden 1964
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Center Left, Hinterlade  - Zustand nach Wasserschaden 1964
Center Left, Hinterlade - Zustand nach Wasserschaden 1964
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Center Left, Vorderlade  - Zustand nach Wasserschaden 1964
Center Left, Vorderlade - Zustand nach Wasserschaden 1964
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Blick von der gegenüberliegenden Tribühne zur Orgel
Blick von der gegenüberliegenden Tribühne zur Orgel
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Bühne und Orgelkammern seitlich
Bühne und Orgelkammern seitlich
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Center Right: 100-Inch-Zungen mit Stimm-SP
Center Right: 100-Inch-Zungen mit Stimm-SP
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Center Right: 100-Inch-Zungen mit Stimm-SP
Center Right: 100-Inch-Zungen mit Stimm-SP
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Center Right: 100-Inch-Zungen mit Stimm-SP
Center Right: 100-Inch-Zungen mit Stimm-SP
Photo: © Gesa Graumann
Atlantic City (NJ), Boardwalk Hall (''Convention Hall''), Spieltisch
Spieltisch
Photo: © Gesa Graumann







© Copyright: Martin Doering
Stand (as of): 2021
Letzte Änderung (last update): 16.03.2021
